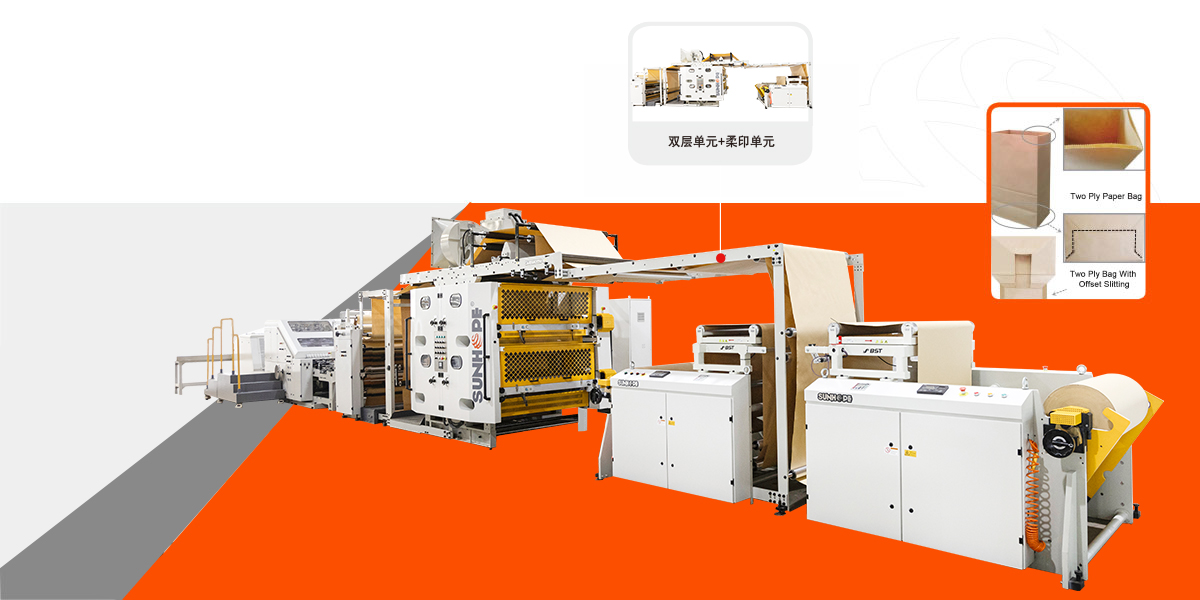

SBH330B+DL02 可调式卷筒方底纸袋机 ( 双层单元 ) 系列
技术参数 | SBH150+DL01 | SBH150B+DL01 | SBH330+DL02 | SBH330B+DL02 | SBH450B+DL03 | SBH450C+DL03 |
纸料宽度 | 280-640 | 280-640 | 405-1050 | 465-1050 | 610-1310 | 690-1310 |
纸卷直径 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
卷芯内径 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
纸张克重 | 40-150 | 40-150 | 45-180 | 50-180 | 70-180 | 70-180 |
纸袋裁切长度 | 191-385 | 191-430 | 280-540 | 280-540 | 368-762 | 368-762 |
纸袋面宽 | 80-200 | 80-200 | 120-330 | 150-330 | 200-450 | 210-450 |
纸袋底宽 | 50-100 | 45-100 | 70-150 | 70-180 | 90-205 | 120-260 |
最高速度 | 250 | 250 | 230 | 220 | 160 | 160 |
总功率 | 15.75 | 15.25 | 21.5 | 21.5 | 25.8 | 25.8 |
机器重量 | about 8600 | about 8600 | about 11500 | about 12000 | about 14000 | about 14000 |
机器外形尺寸 | 14.6×2.6×1.96 | 14.6×2.6×1.96 | 17.5×3.1×1.96 | 17.5×3.1×1.96 | 19×3.9×2 | 19×3.9×2 |
三种封底方式 | in | in | in | in | in(Two) | in(Two) |
伺服拇指切刀 | in | in | in | in | no | no |
纸袋裁切长度：191-762mm
纸袋面宽: 80-450mm
纸袋底宽: 45-260mm
