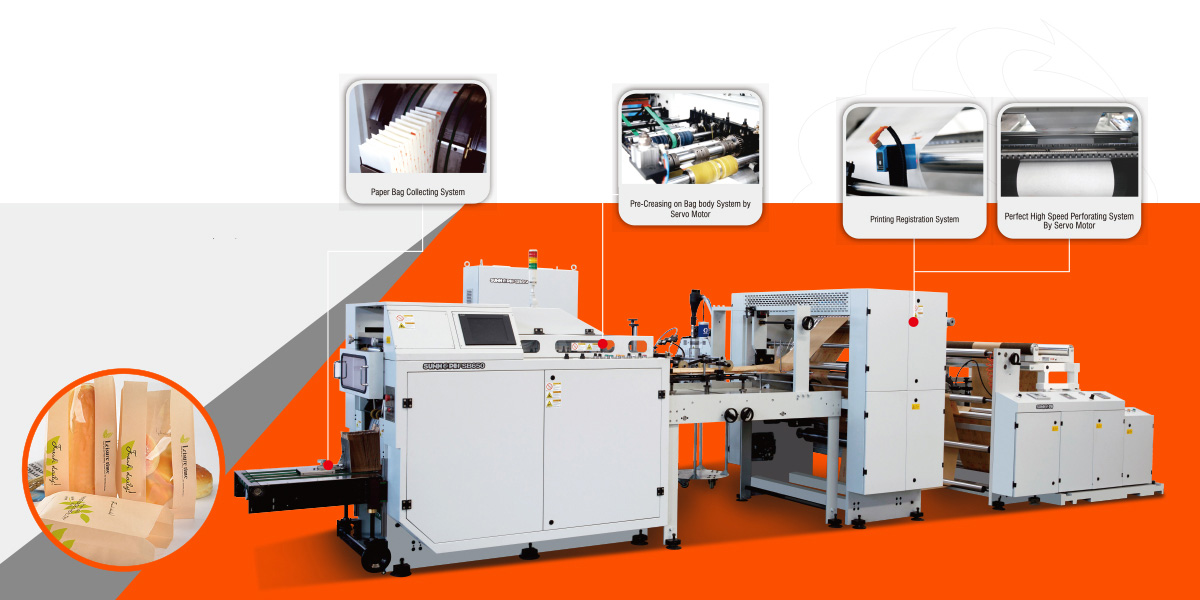

FSB650 Full-SERVO High Speed Flat & Satchel Paper Bag Machine Series
Technical Info | FSB400 | FSB650 | FSB1600 | |
Single Stream | Face Width (w/o Gusset) (mm) | 60-510 | 80-320 | 39-368 |
Face Width (with Gusset) (mm) | 51-317 | / | 51-317 | |
Total Gusset (mm) | 13-70 | / | 13-127 | |
Dual Stream | Face Width (w/o Gusset) (mm) | 60-230 | / | 39-177 |
Face Width (with Gusset) (mm) | 60-190 | / | 51-146 | |
Total Gusset (mm) | 13-70 | / | 13-76 | |
Bag Length (mm) | 90-385 | 140-645 | / | |
Gusset Size (mm) | 20-100 | 25-100 | / | |
Cutoff Length Range (mm) | 105-400 | 145-650 | 102-292 | |
Maximum Web Width (mm) | 1050 | 910 | 762 | |
Maximum Roll Diameter (mm) | Φ1500 | Φ1500 | Φ1200 | |
Paper Substrate Range (gsm) | 30-90 | 30-70 | 30-65 | |
Plastic Window Width (mm) | 50-200 | 50-200 | / | |
Minimum Seam Overlay (mm) | 20 | 20 | 16 | |
Minimum Former Flap = Seam Overlay + Seam Offset (mm) | 25 | 25 | 25 | |
Max. Speed | One Stream (bags/min) | 1000 | 550 | 800 |
Double Stream (bags/min) | 2000 | / | 1600 | |
Total Power (kW) | 52.5+(hot glue machine:3KW) | 19.65 | 19.65 | |
Weight (kg) | 6000 | 5500 | 4500 | |
Machine Size ((L×W×H)m) | 9.05*2.5*2 | 8.5×3×1.96 | 7.5×3×1.96 | |
Options Unit | FSB650 | FSB650 | FSB1600 | |
DL02 Two Ply Unit | yes | yes | / | |
1-4 Colors Flexo Printer Unit | yes | yes | yes | |
Face Width(w/o Gusset)：80-320mm
Gusset Size: 25-100mm
Cutoff Length Range: 145-650mm
