Block Bottom


Technical Info

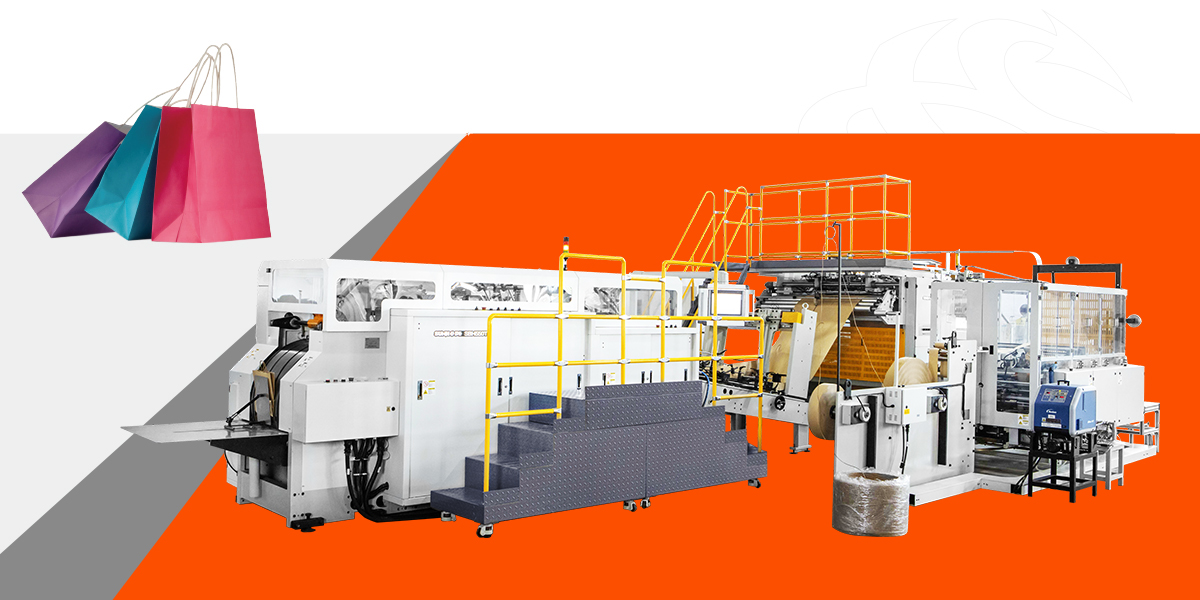

SBH550T-6HD

SBH550TB-6HD

Paper Roll Width (mm)

650-1510

690-1510

630-1510()

670-1510()

Paper Roll Dia. (mm)

≤1500

≤1500

Paper Roll Core Dia. (mm)

Φ76

Φ76

Paper Thickness (gsm)

80-150

80-150

Tube Cut Off Length (mm)

360-650

360-650

360-770()

360-770()

Bag Face Width (mm)

230-540

230-540

220-540()

220-540()

Bag Bottom Size (mm)

80-230

100-280

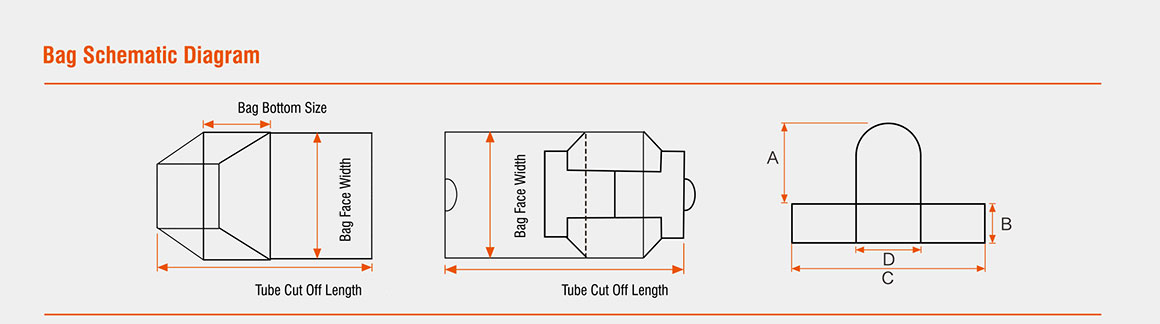

Handle Rope Height (A)(mm)

115/125/140/150

115/125/140/150

Handle Patching Length (C)(mm)

190.5

190.5

Handle Patching Width (B)(mm)

40-50

40-50

Rope Pitch (D)(mm)

95

95

Handle Rope Diameter (mm)

Φ3-4.5

Φ3-4.5

Handle Paper Patch Roll Diameter(mm)

Φ1200

Φ1200

Handle Paper Patch Roll Width(mm)

80-100

80-100

Handle Paper Patch Thickness (gsm)

90-135

90-135

Max. Speed (bags/min)

120

120

Total Power (kW)

37.2

37.2

Machine Weight (kg)

about 20500

about 20500

Machine Size ((L×W×H)m)

16.2×6×3.4

16.2×6×3.4

Three Types Bottom Seal

in(One)

in(One)

Servo Lip Cut Device

no

no

1-4 Colors Flexo Printer Unit

in

in

Servo Patch Unit

in

in

Note: with "" No Handle.


Tube Cut Off Length:360-650mm

Bag Face Width: 230-540mm

Bag Bottom Size: 80-280mm
