Block Bottom


Technical Info

SBH150B-2HD

SBH330-2HD

SBH330-5HD

SBH330B-5HD

SBH330BPro-5HD

SBH450B-5HD

SBH450B-6HD

SBH450C-5HD

SBH450C-6HD

Paper Roll Width (mm)

420-640

430-1050

550-1050

550-1050

570-1050

670-1310

670-1310

730-1310

730-1310

280-640()

405-1050()

405-1050()

465-1050()

505-1050()

610-1310()

610-1310()

690-1310()

690-1310()

Paper Roll Dia. (mm)

≤1500

≤1500

≤1500

≤1500

≤1500

≤1500

≤1500

≤1500

≤1500

Paper Roll Core Dia. (mm)

Φ76

Φ76

Φ76

Φ76

Φ76

Φ76

Φ76

Φ76

Φ76

Paper Thickness (gsm)

40-150

45-180

45-180

50-180

50-180

70-180

70-180

70-180

80-180

Tube Cut Off Length (mm)

191-320

280-430

280-430

280-430

280-430

380-640

380-640

380-640

380-640

191-430()

280-540()

280-540()

280-540()

280-540()

368-762()

368-762()

368-762()

368-762()

Bag Face Width (mm)

120-200

120-330

180-330

180-330

180-330

210-450

230-450

210-450

230-450

80-200()

120-330()

120-330()

150-330()

150-330()

200-450()

200-450()

210-450()

210-450()

Bag Bottom Size (mm)

50-100

70-150

70-150

70-180

90-180

90-205

90-205

120-260

120-260

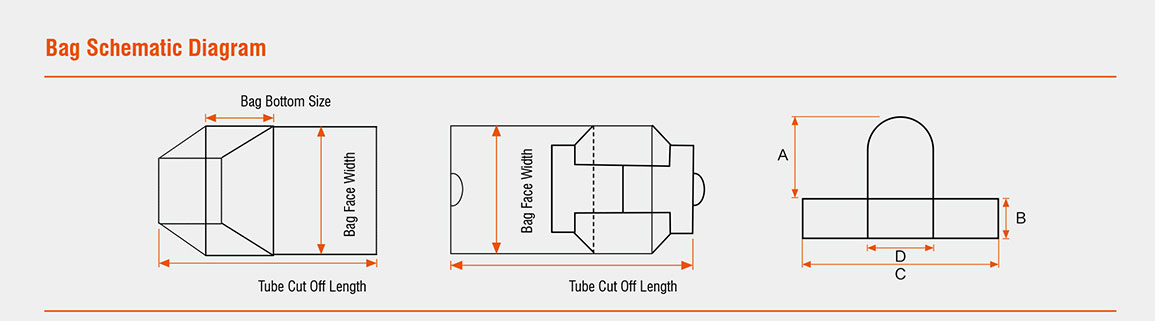

Handle Rope Height (A)(mm)

102/115/125

102/115/125/140

102/115/125/140

102/115/125/140

102/115/125/140

102/115/125/140

115/125/140/150

102/115/125/140

115/125/140/150

Handle Patching Length (C)(mm)

95.25

95.25

152.4

152.4

152.4

152.4

190.5

152.4

190.5

Handle Patching Width (B)(mm)

40-50

40-50

40-50

40-50

40-50

40-50

40-50

40-50

40-50

Rope Pitch (D)(mm)

47.6

47.6

76

76

76

76

95

76

95

Handle Rope Diameter (mm)

Φ3-4.5

Φ3-4.5

Φ3-4.5

Φ3-4.5

Φ3-4.5

Φ3-4.5

Φ3-4.5

Φ3-4.5

Φ3-4.5

Handle Paper Patch Roll Diameter(mm)

Φ1200

Φ1200

Φ1200

Φ1200

Φ1200

Φ1200

Φ1200

Φ1200

Φ1200

Handle Paper Patch Roll Width(mm)

80-100

80-100

80-100

80-100

80-100

80-100

80-100

80-100

80-100

Handle Paper Patch Thickness (gsm)

90-135

90-135

90-135

90-135

90-135

90-135

90-135

90-135

90-135

Max. Speed (bags/min)

150

150

150

150

150

120

120

120

120

Total Power (kW)

24.5

30.5

30.5

31.32

31.32

33.22

33.22

33.22

33.22

Machine Weight (kg)

about 13000

about 16000

about 16000

about 16000

about 16000

about 18000

about 18000

about 18000

about 18000

Machine Size ((L×W×H)m)

12×5.5×2.5

13.6×6×2.5

13.6×6×2.5

13.6×6×2.5

13.6×6×2.5

14.8×6×2.5

14.8×6×2.5

14.8×6×2.5

14.8×6×2.5

Three Types Bottom Seal

in

in

in

in

in

in(Two)

in(Two)

in(Two)

in(Two)

Servo Lip Cut Device

in

in

in

in

in

w/o

w/o

w/o

w/o

1-4 Colors Flexo Printer Unit

in

in

in

in

in

in

in

in

in

Servo Patch Unit

in

in

in

in

in

in

in

in

in

Note: with "" No Handle.


Tube Cut Off Length:191-640mm

Bag Face Width: 120-450mm

Bag Bottom Size: 50-260mm
