Paper Roll Width (mm)

670-1510

710-1510

630-1510(★)

670-1510(★)

Paper Roll Dia. (mm)

≤1500

≤1500

Paper Roll Core Dia. (mm)

Φ76

Φ76

Paper Thickness (gsm)

80-150

80-150

Tube Cut Off Length (mm)

360-770

360-770

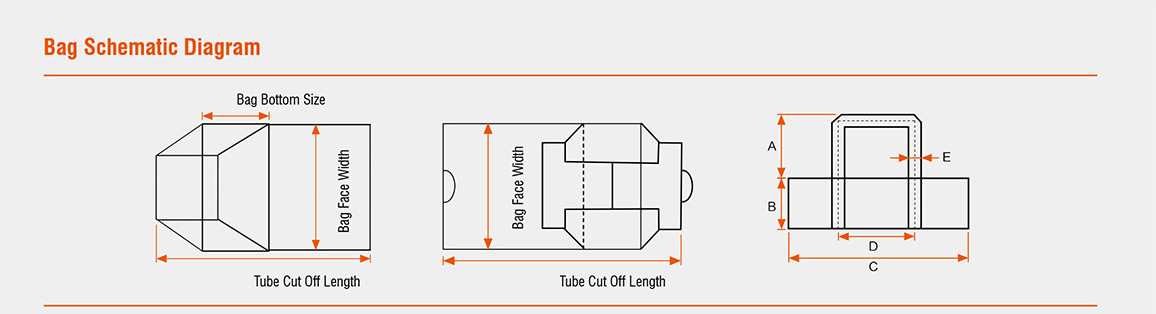

Bag Face Width (mm)

240-540

240-540

220-540(★)

220-540(★)

Bag Bottom Size (mm)

80-230

100-280

Flat Handle Height (A) (mm)

100

100

Handle Patching Width (B) (mm)

52

52

Handle Patching Length (C) (mm)

170

170

Internal Flat Handle Pitch (D) (mm)

109

109

Internal Flat Handle Width (E) (mm)

16

16

Internal Flat Handle Paper Roll Width (mm)

95

95

Internal Flat Handle Paper Thickness (gsm)

80-100

80-100

Internal Flat Handle Paper Roll Diameter (mm)

1200

1200

Handle Paper Patch Roll Diameter (mm)

1200

1200

Handle Paper Patch Roll Width (mm)

170

170

Handle Paper Patch Thickness (gsm)

80-100

80-100

Max. Speed (bags/min)

130

130

Total Power (kW)

36.3

36.3

Machine Weight (kg)

27000

27000

Machine Size ((L×W×H)m)

18.3×5.5×2.8

18.3×5.5×2.8

Three Types Bottom Seal

in(One)

in(One)

Servo Lip Cut Device

no

no

1-4 Colors Flexo Printer Unit

yes

yes

Servo Patch Unit

yes

yes

DLO2 TWO Ply Unit

yes

yes
