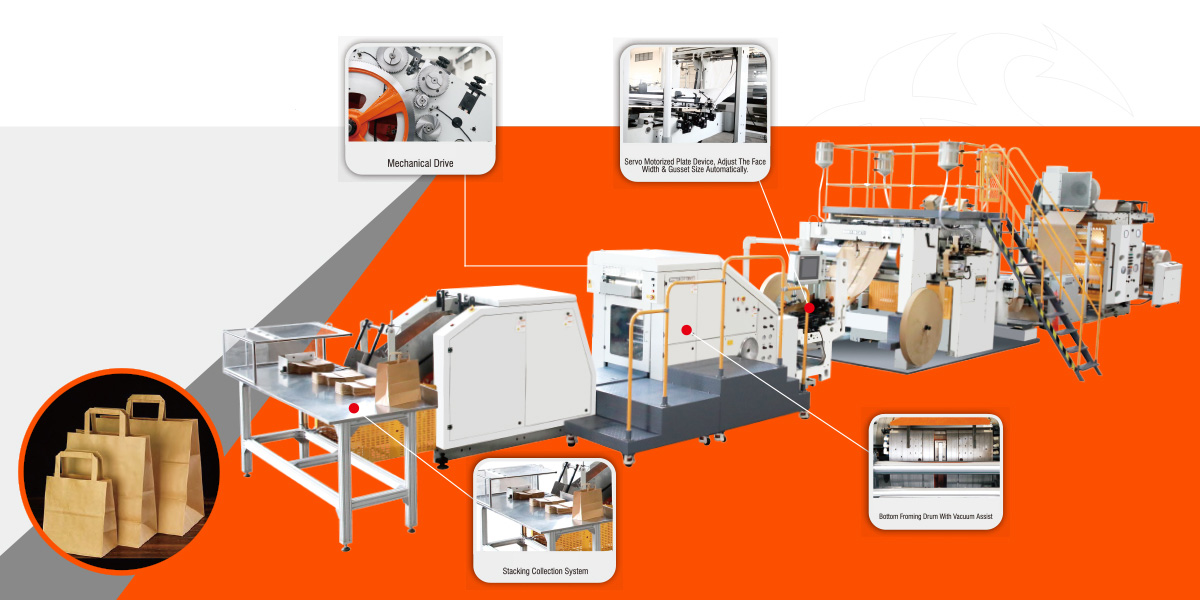

Block Bottom


Technical Info

SBH330-508TH

SBH330B-508TH

SBH330BPro-508TH

SBH450B-518TH

SBH450C-518TH

Paper Roll Width (mm)

550-1050

550-1050

570-1050

690-1310

750-1310

405-1050()

465-1050()

505-1050()

610-1310()

690-1310()

Paper Roll Dia. (mm)

≤1500

≤1500

≤1500

≤1500

≤1500

Paper Roll Core Dia. (mm)

Φ76

Φ76

Φ76

Φ76

Φ76

Paper Thickness (gsm)

45-150

50-150

50-150

70-150

70-150

Tube Cut Off Length (mm)

280-540

280-540

280-540

368-762

368-762

Bag Face Width (mm)

180-330/190-330

180-330/190-330

180-330/190-330

240-450

240-450

120-330()

150-330()

150-330()

200-450()

210-450()

Bag Bottom Size (mm)

70-150

70-180

90-180

90-205

120-260

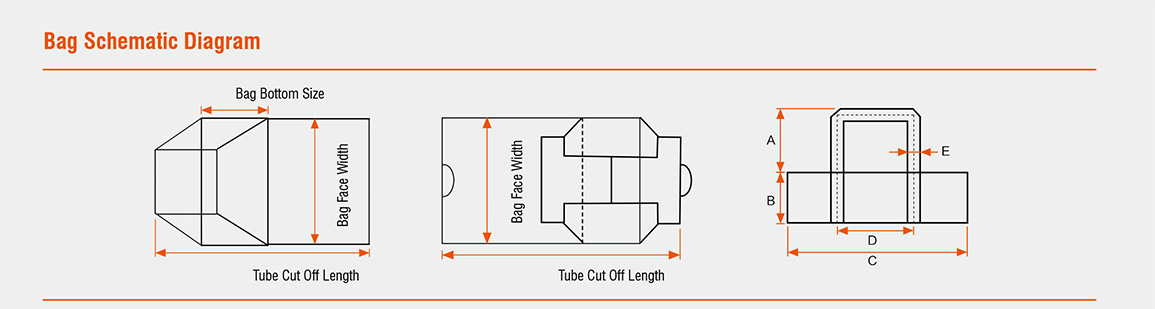

Flat Handle Height (A) (mm)

75

75

75

100

100

Handle Patching Width (B) (mm)

52

52

52

52

52

Handle Patching Length (C) (mm)

160

160

160

170

170

Internal Flat Handle Pitch (D) (mm)

100

100

100

109

109

Internal Flat Handle Width (E) (mm)

12/16

12/16

12/16

16/12

16/12

Internal Flat Handle Paper Roll Width (mm)

78-85/95

78-85/95

78-85/95

95

95

Internal Flat Handle Paper Thickness (gsm)

70-80

70-80

70-80

80-100

80-100

Internal Flat Handle Paper Roll Diameter (mm)

1200

1200

1200

1200

1200

Handle Paper Patch Roll Diameter (mm)

1200

1200

1200

1200

1200

Handle Paper Patch Roll Width (mm)

160

160

160

170

170

Handle Paper Patch Thickness (gsm)

80-100

80-100

80-100

80-100

80-100

Max. Speed (bags/min)

150

150

150

130

130

Total Power (kW)

29.6

32

32

31

31

Machine Weight (kg)

23000

23000

23000

25000

25000

Machine Size ((L×W×H)m)

14.85×4.2×2.8

14.85×4.2×2.8

14.85×4.2×2.8

16.1×4.5×2.8

16.1×4.5×2.8

Three Types Bottom Seal

in

in

in

in(Two)

in(Two)

Servo Lip Cut Device

in

in

in

w/o

w/o

1-4 Colors Flexo Printer Unit

yes

yes

yes

yes

yes

Servo Patch Unit

yes

yes

yes

yes

yes

DLO2 TWO Ply Unit

yes

yes

yes

yes

yes

Note: with "" No Handle.


Tube Cut Off Length:280-762mm

Bag Face Width: 180-450mm

Bag Bottom Size: 70-260mm
