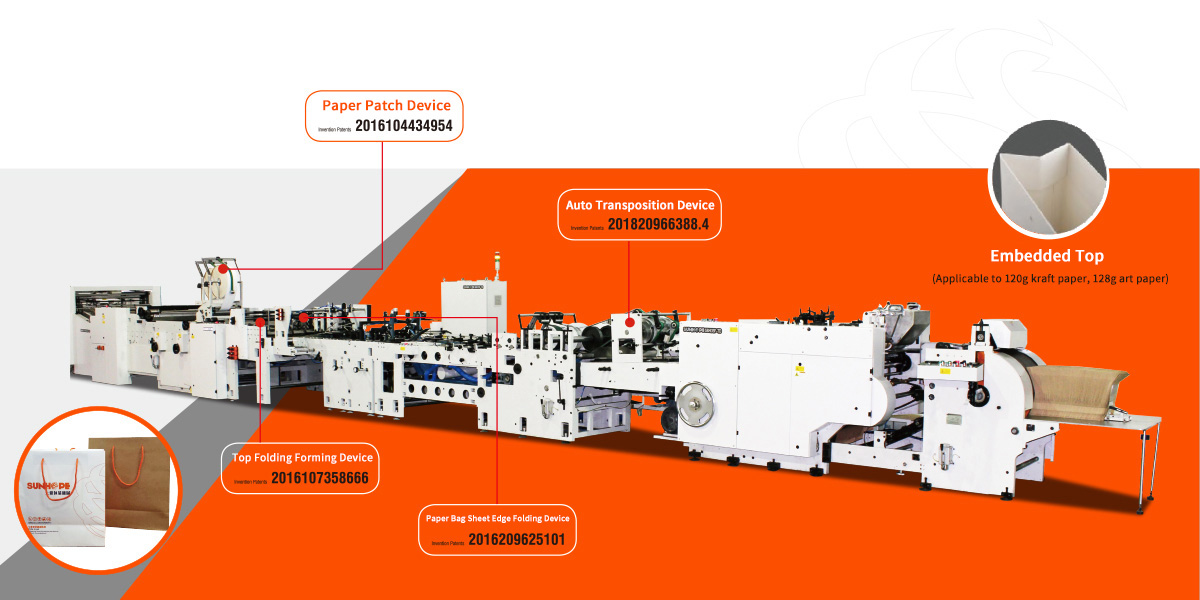

SBH35F-TD Fully Auto Sheet-Fed Square Bottom Paper Bag Machine Series
Technical Info | SBH24F-TD | SBH35F-TD | SBH45F-TD |
Sheet Width(mm) | 325-720 | 530-1050 | 660-1290 |
Sheet Length(mm) | 250-460 | 350-600 | 340-630 |
Paper Thickness(gsm) | 100-180 | 100-190 | 128-250 |
Bag Face Width(mm) | 100-240 | 160-350 | 220-450 |
Bag Bottom Size(mm) | 60-100 | 70-150 | 100-180 |
Bag Mouth Fold Width(mm) | 30-50 | 30-60 | 30-60 |
Reinforced Paper Width(mm) | 25-45 | 25-55 | 25-55 |
Reinforced Paper Length(mm) | 80-225 | 80-330 | 100-400 |
Total Power(kW) | 27 | 27 | 27 |
Machine Size((L×W×H)m) | 20×2.71×2.05 | 20×3×2.05 | 20×3.2×2.05 |

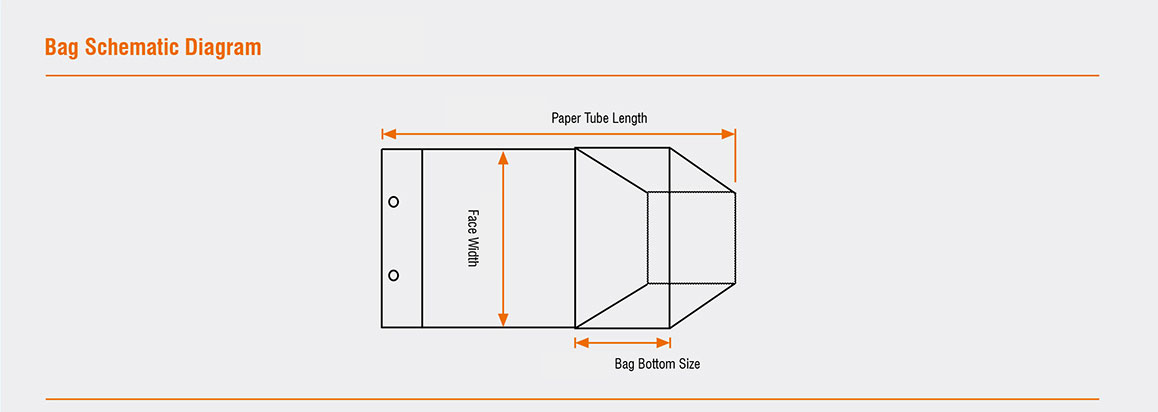

Bag Face Width：100-450mm
Bag Bottom Size: 60-180mm
Bag Mouth Fold Width: 30-60mm
