Paper Roll Width (mm)

670-1510(*)

485-1250(*)

Paper Roll Dia. (mm)

≤1500

≤1500

Material Core Dia. (mm)

Φ76

Φ76

Paper Thickness (gsm)

80-150

70-150

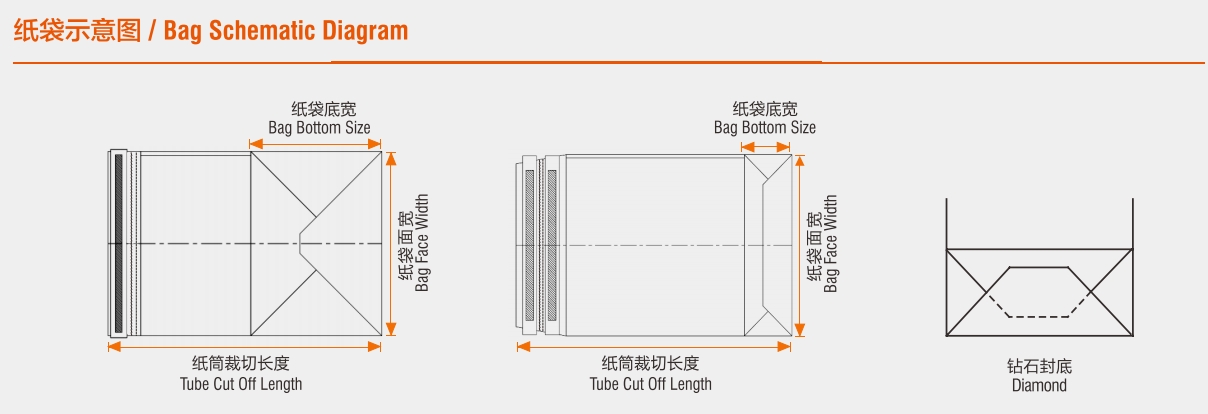

Tube Length (mm)

360-770

240-655

Bag Body Width (mm)

220-540

150-360

Bottom Size (mm)

80-220

70-220

Flap length (mm)

45-80

45-80

Hot glue length (mm)

40-420

40-420

Hot glue width (mm)

8-20

8-20

Peal paper length (mm)

50-500

50-370

Max.Speed (bags/min)

100

120

Total Power (KW)

83.3

(not included hot glue system

72

(inculed PSP, not included hot glue system: 5.7kW)

Weight of Machine (kg)

about 16500

about 15500

Overall Dimension (L x W x H)m)

19.71x4.7x1.9

17.5x4x1.8
